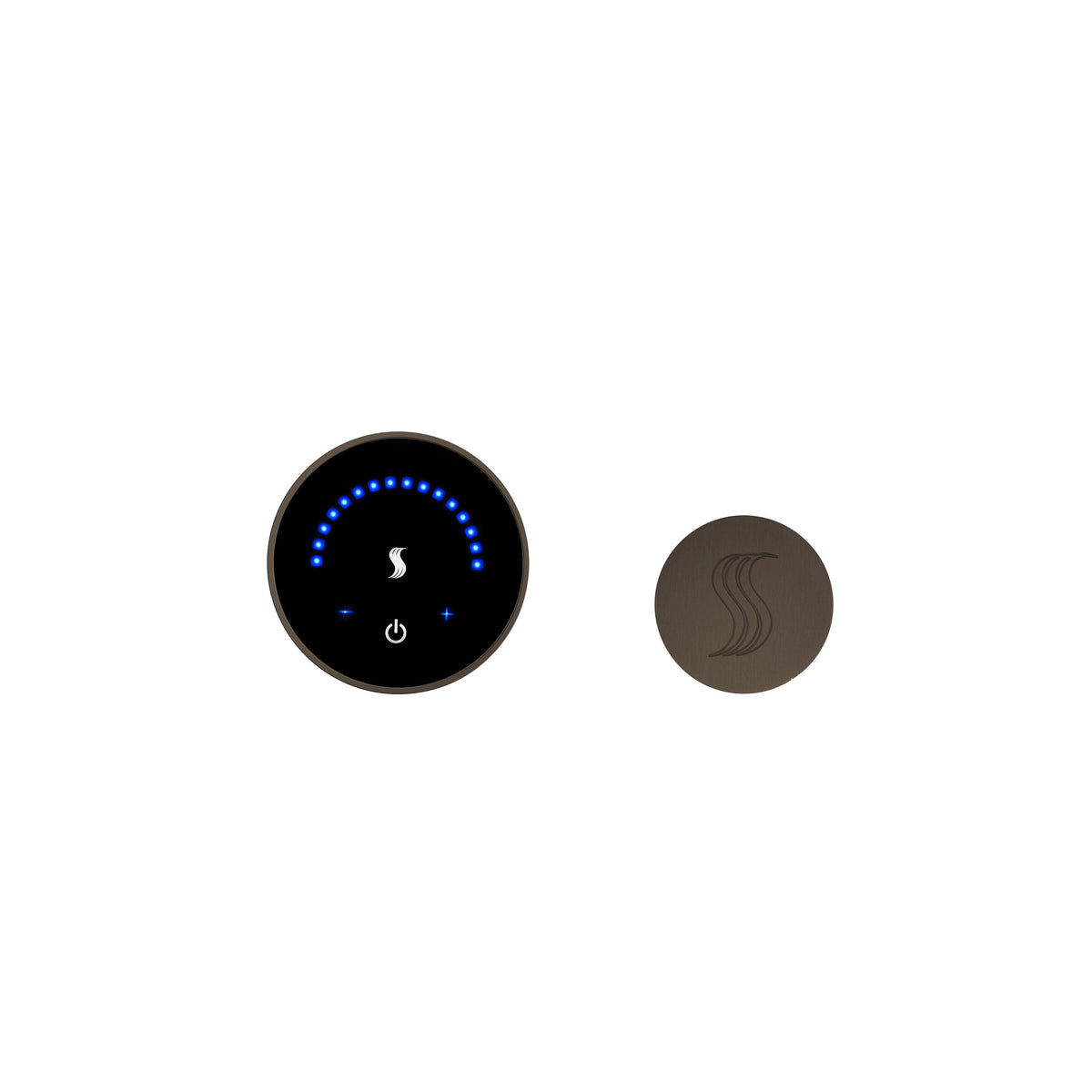

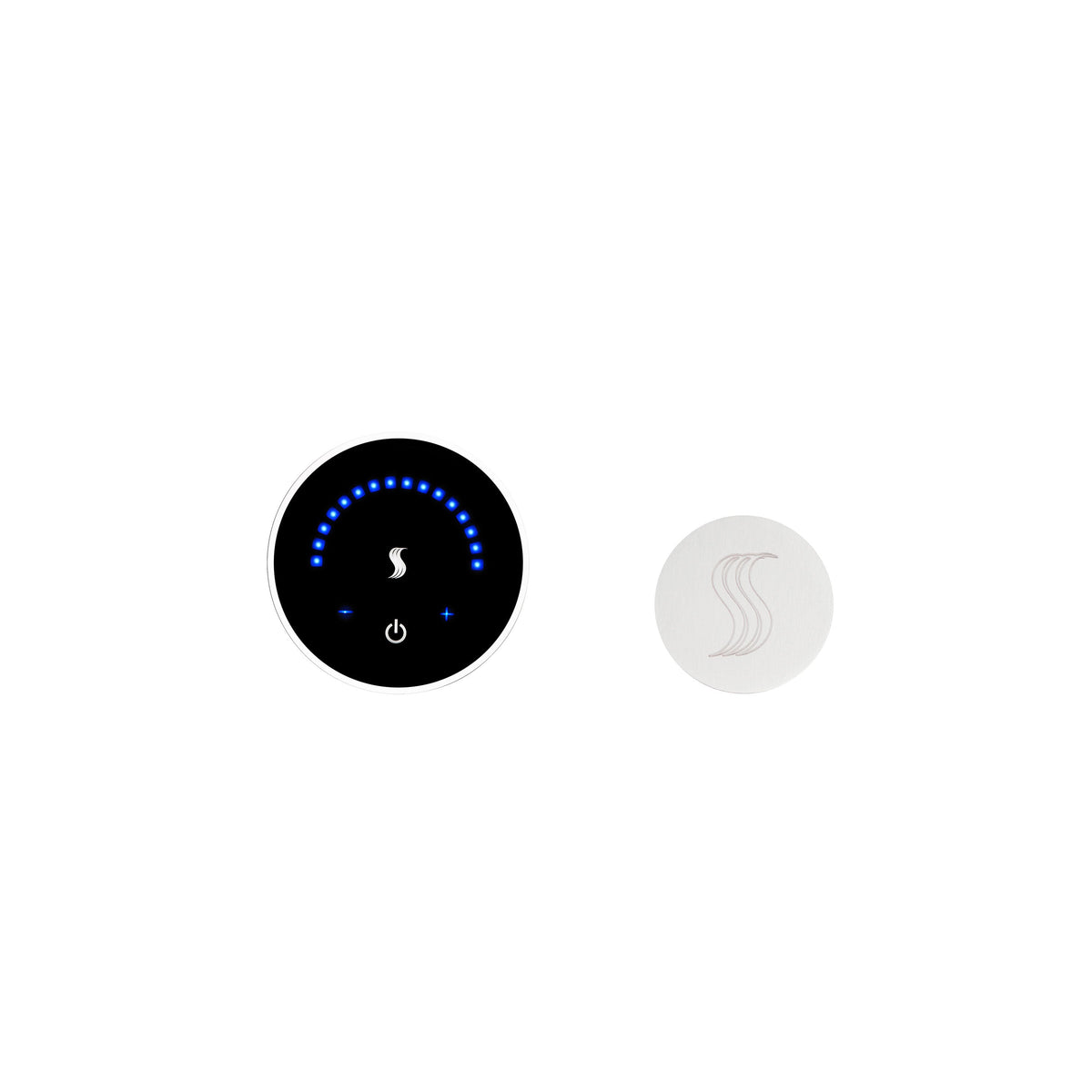

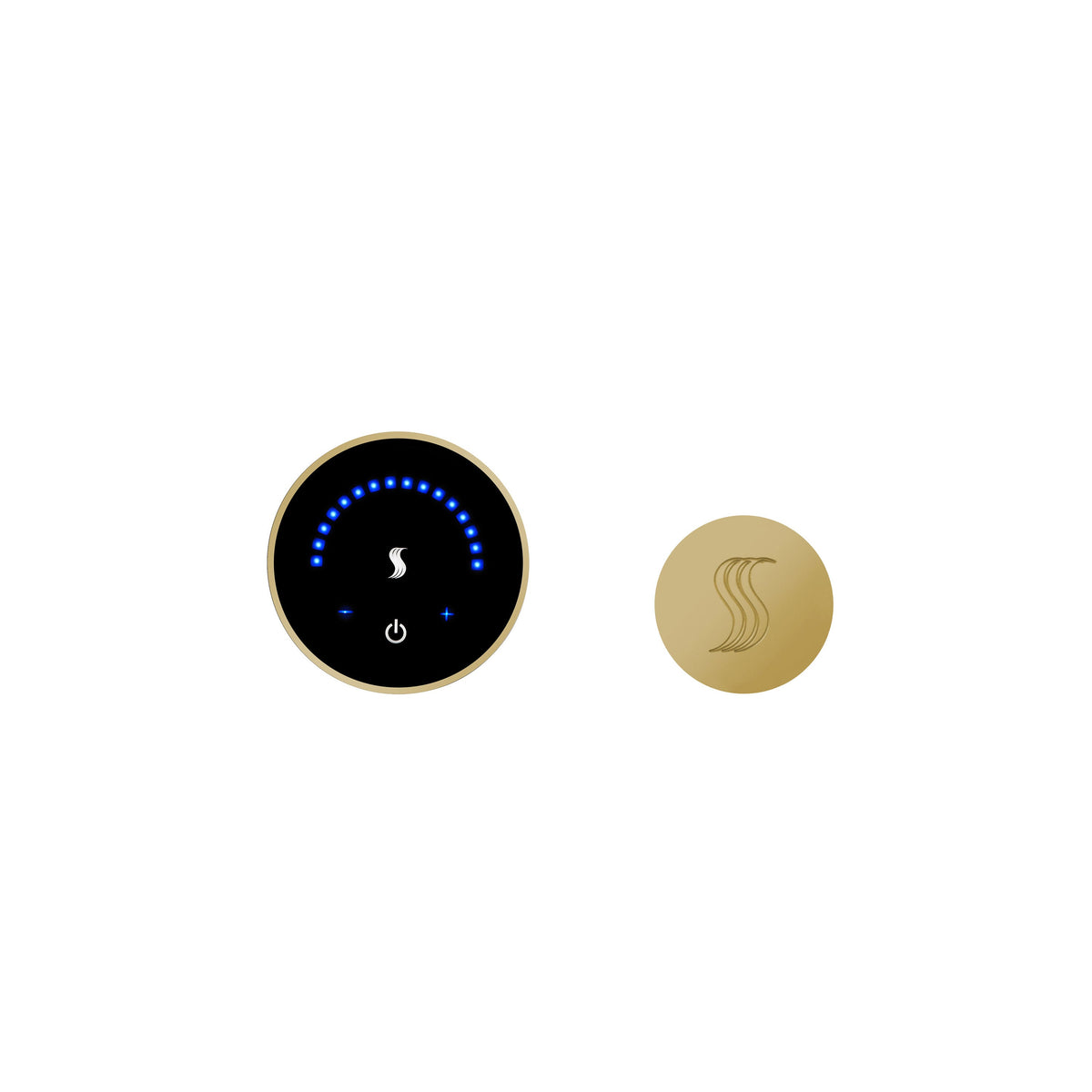

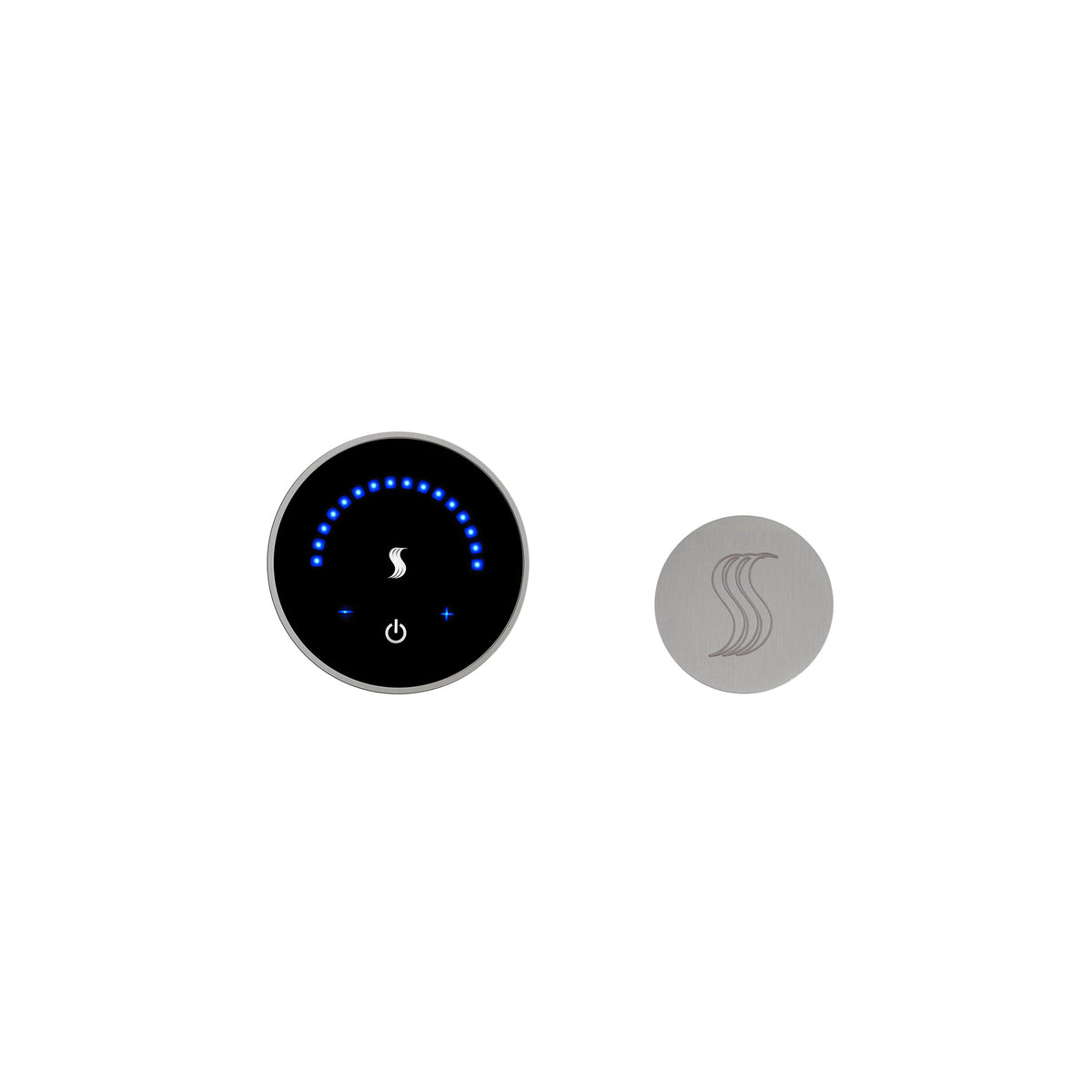

A minimalist steam-only kit: Thermasol's round, wall-mounted MicroTouch control with a matching round SteamVection steam head. Works with PRO Series III generators (sold separately).
Key Features
- Steam-only control with a capacitive touch interface
- Solid brass body
- Built-in 45-minute steam session timer
- Integrated temperature sensor with steam temperature control
- Remembers your last steam temperature
- Operates Auto PowerFlush™ and FastStart™ on PRO Series generators
- Convection design delivers even, floor-to-ceiling steam with no hot or cold zones
- Allows the closest safe proximity to the steam outlet
- Built-in aromatherapy well for essential oils
What's Included
- MicroTouch control (round, wall-mount)
- SteamVection steam head (round)
Specifications
| Control size | 3" diameter, surface mount (1.5" through-hole for cable) |
|---|---|
| SteamVection steam head | 1.75" face, 1.9" deep; requires housing kit 10-8182 (included with PRO Series III generators) |
| Finishes | 9 designer finishes |
Installation & Space Requirements
Mount the control inside the shower, 60 inches from the floor to its center, and as far from the steam outlet as possible — never next to the steam head. Install the steam head 24 inches above the shower floor and at least 6 inches from all corners — not beneath a bench and away from the control. Seal the outlet to keep vapor out of the shower walls. See the installation manual for complete requirements.
Manuals & Spec Sheets
Art of Steam Co. is an authorized Thermasol reseller. Thermasol warranties apply only to products purchased from authorized resellers.
Questions about sizing, wiring, or compatibility? Contact the Art of Steam Co. team — we're happy to help.
