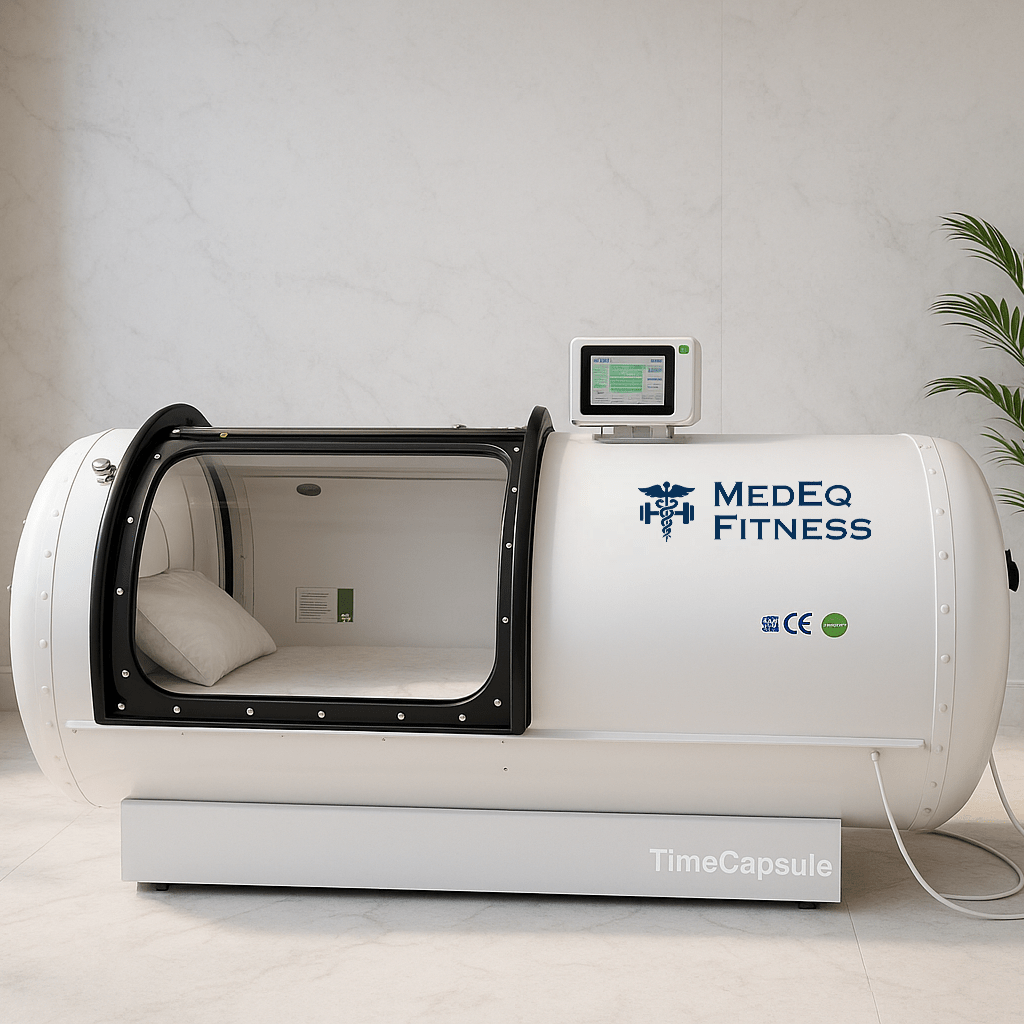

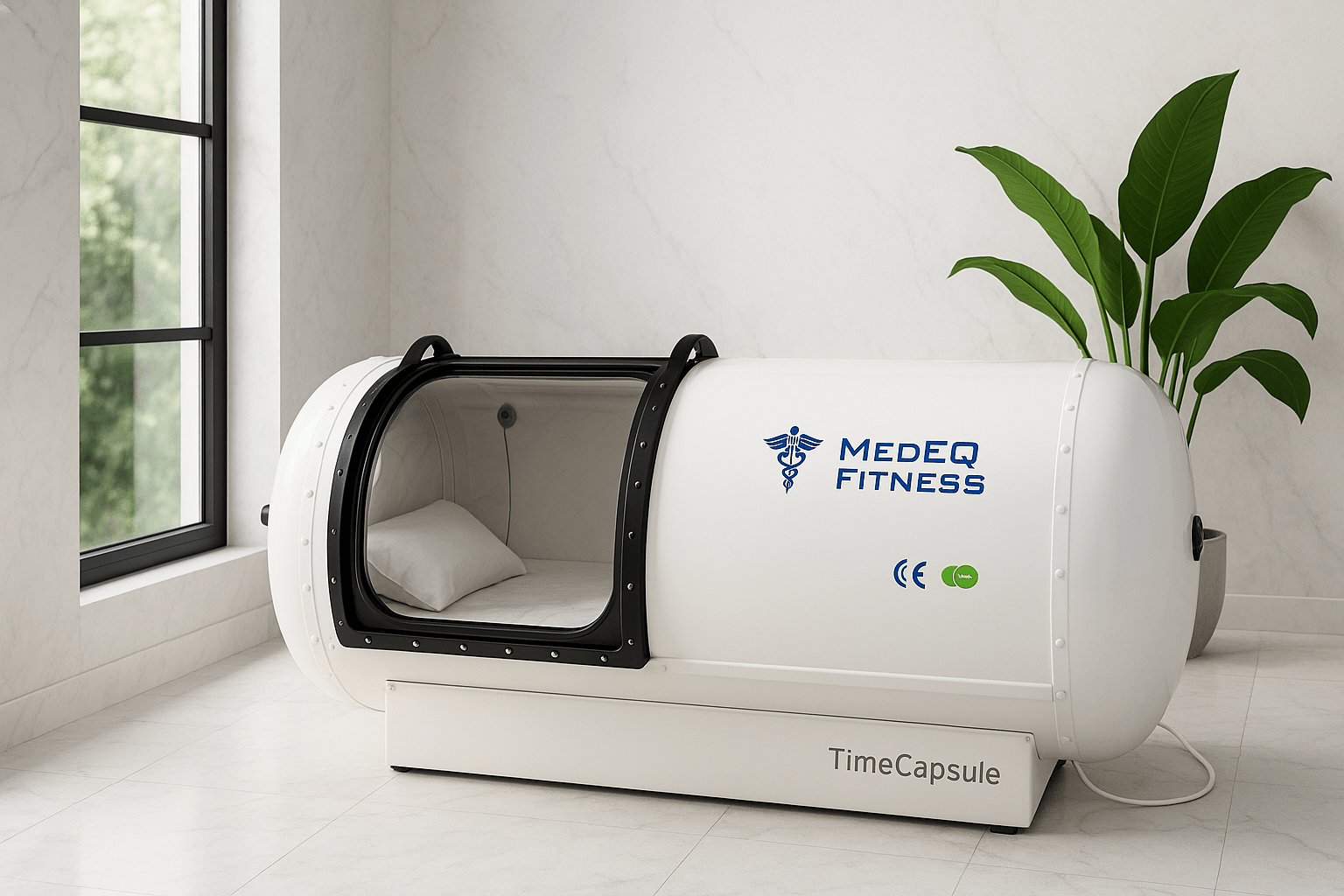

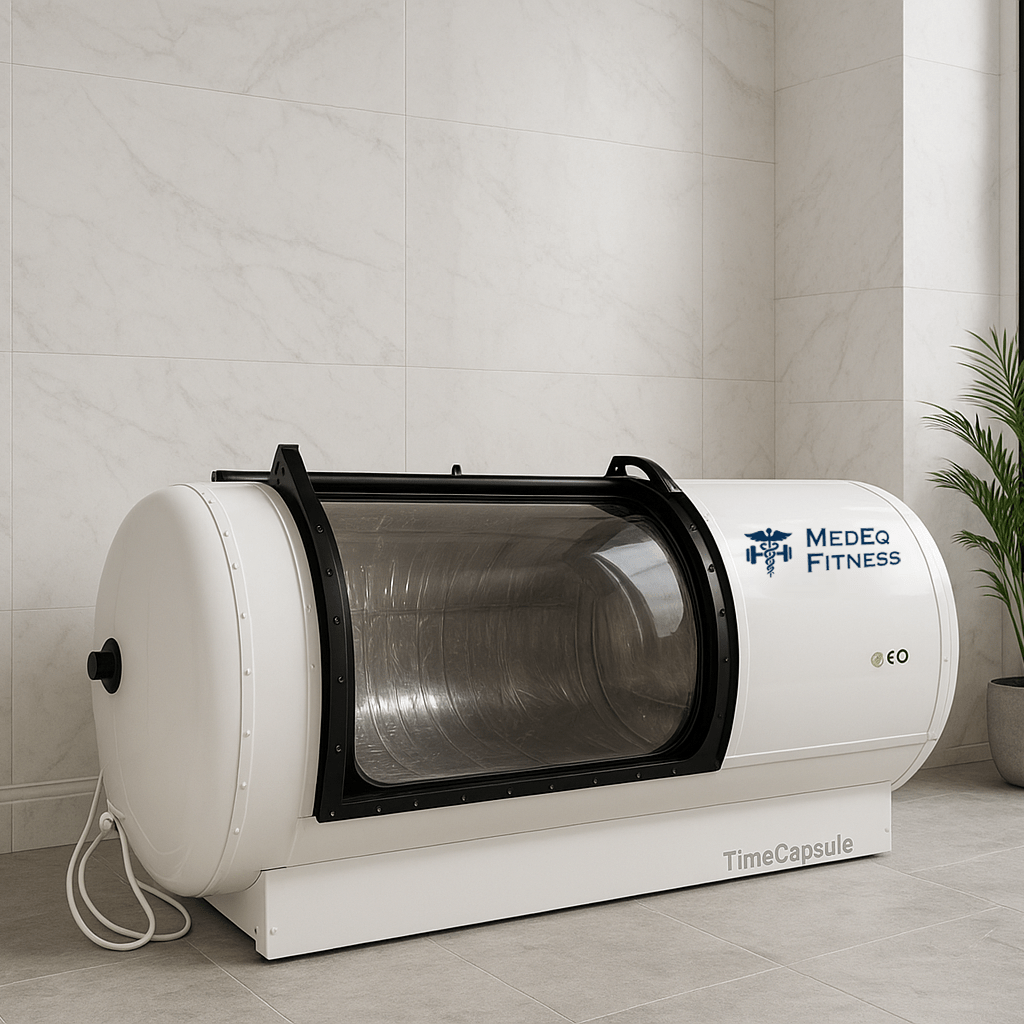

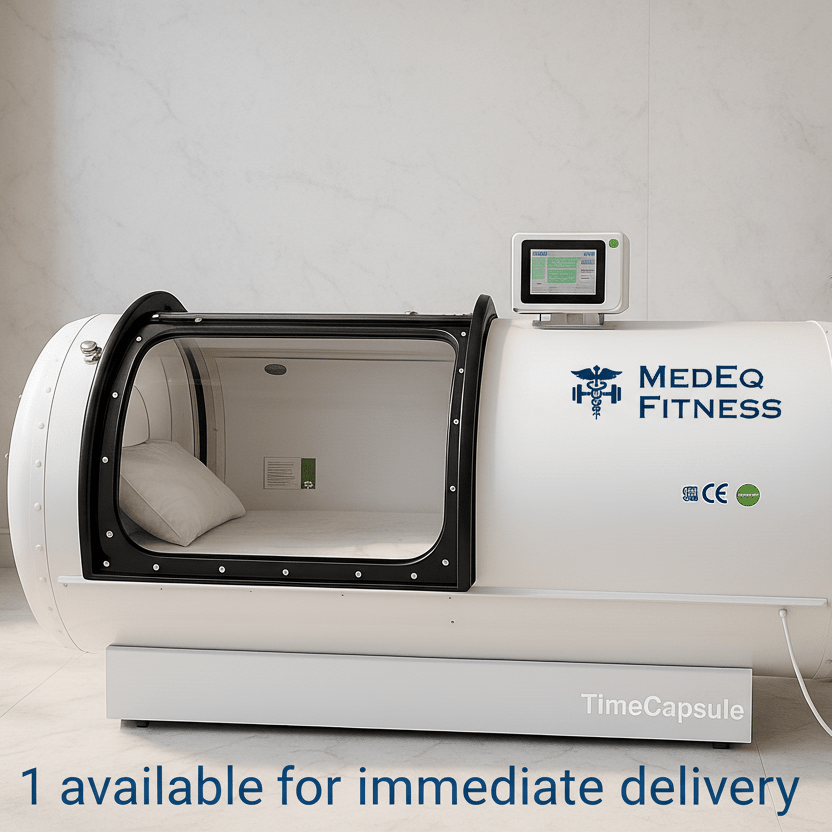

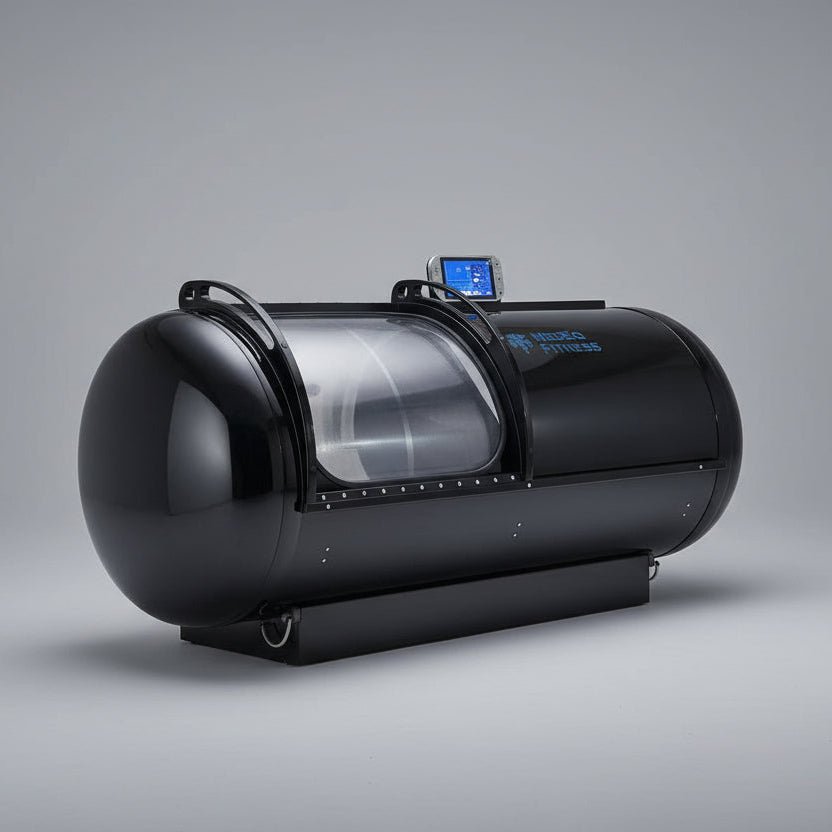

TimeCapsule C750+ Hard-Shell Hyperbaric Chamber — Premier Edition
The MedEq C750+ Premier Edition is an upgraded, capsule-style hard-shell hyperbaric chamber engineered to deliver advanced performance, premium comfort, and complete atmospheric control. Custom-manufactured to strict structural specifications, this system utilizes a robust, aircraft-grade aluminum alloy shell to safely maintain operating pressures up to 2.0 ATA(approximately 2 bar) for higher-intensity wellness protocols.

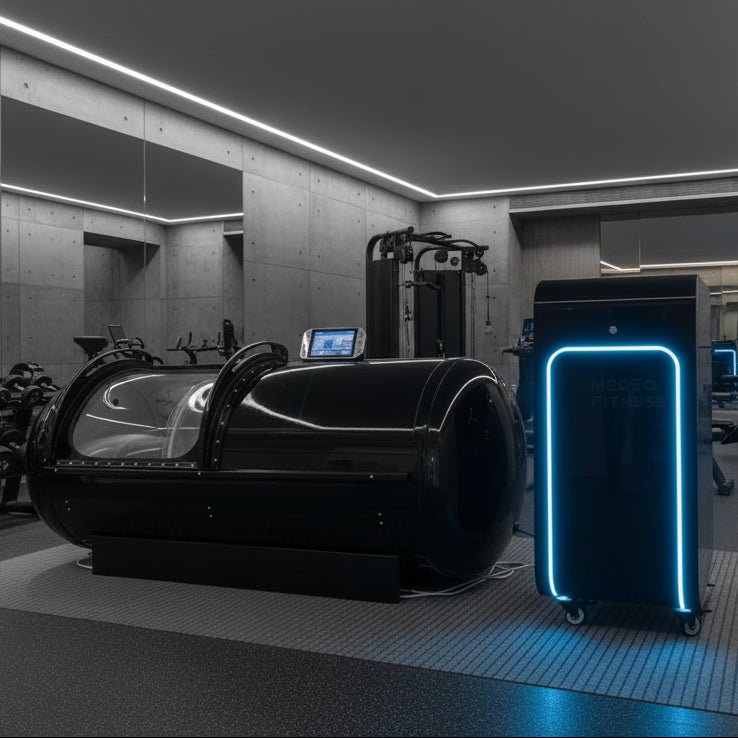

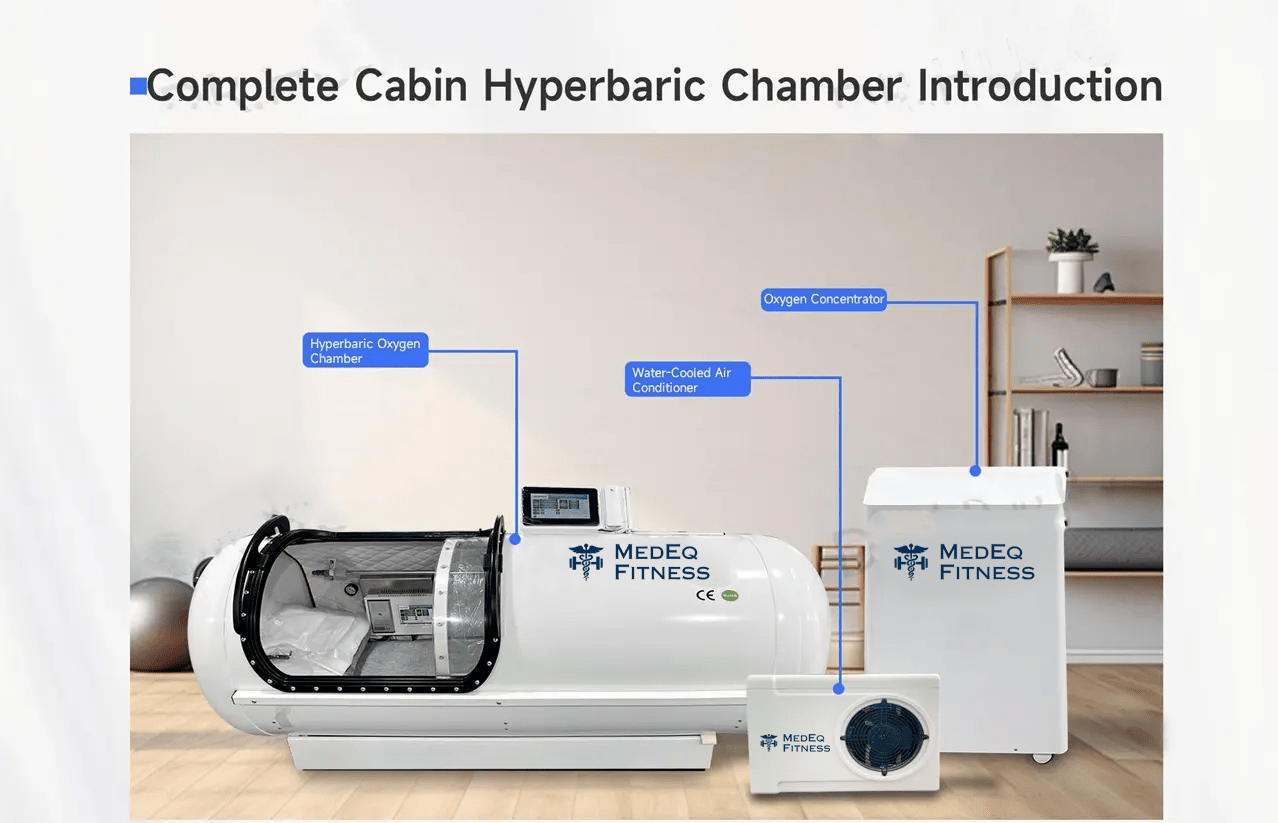

Designed for fitness enthusiasts, athletes, professional recovery centers, and high-end home installations, the C750+ integrates a spacious monoplace layout within a streamlined, space-saving footprint. It features a complete all-in-one external host consolethat unifies the air compressor, oxygen system, and internal climate control loop into a single, cohesive unit to eliminate room clutter and simplify installation.
Key Features & Advanced Engineering
-
True 2.0 ATA Capability:Rated for advanced protocols with a flexible operating range configured for professional clinical and high-performance wellness environments.
-

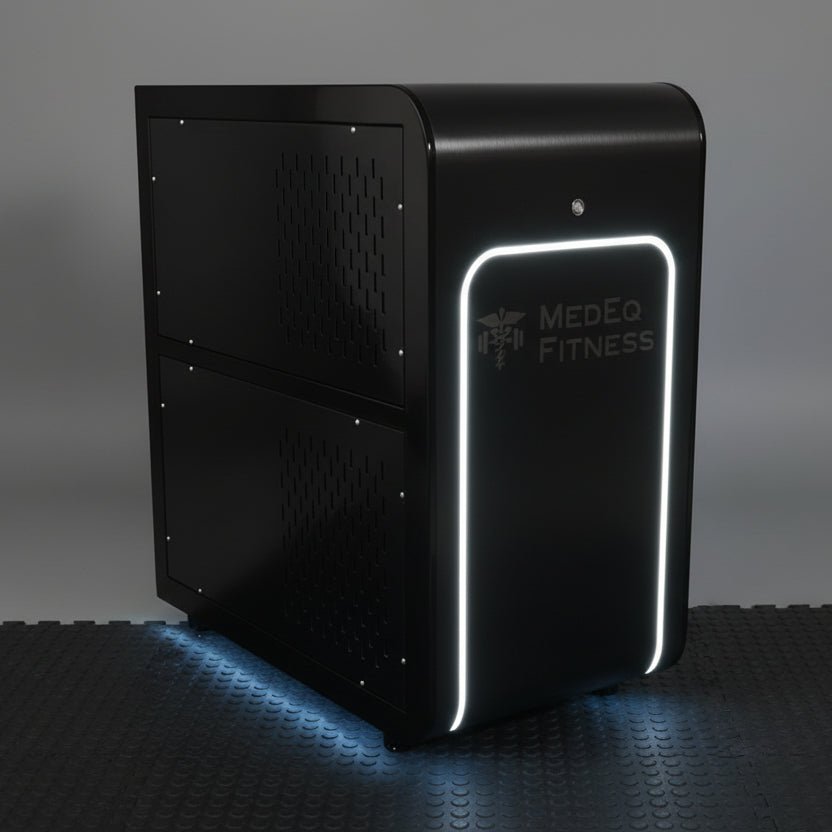

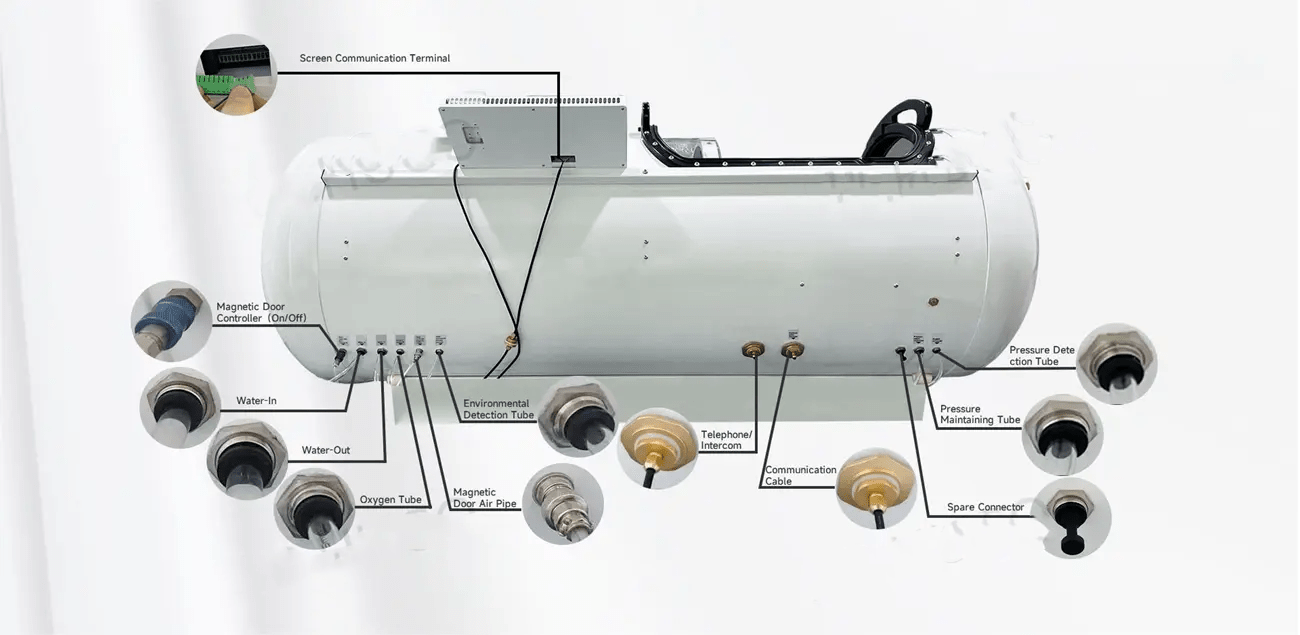

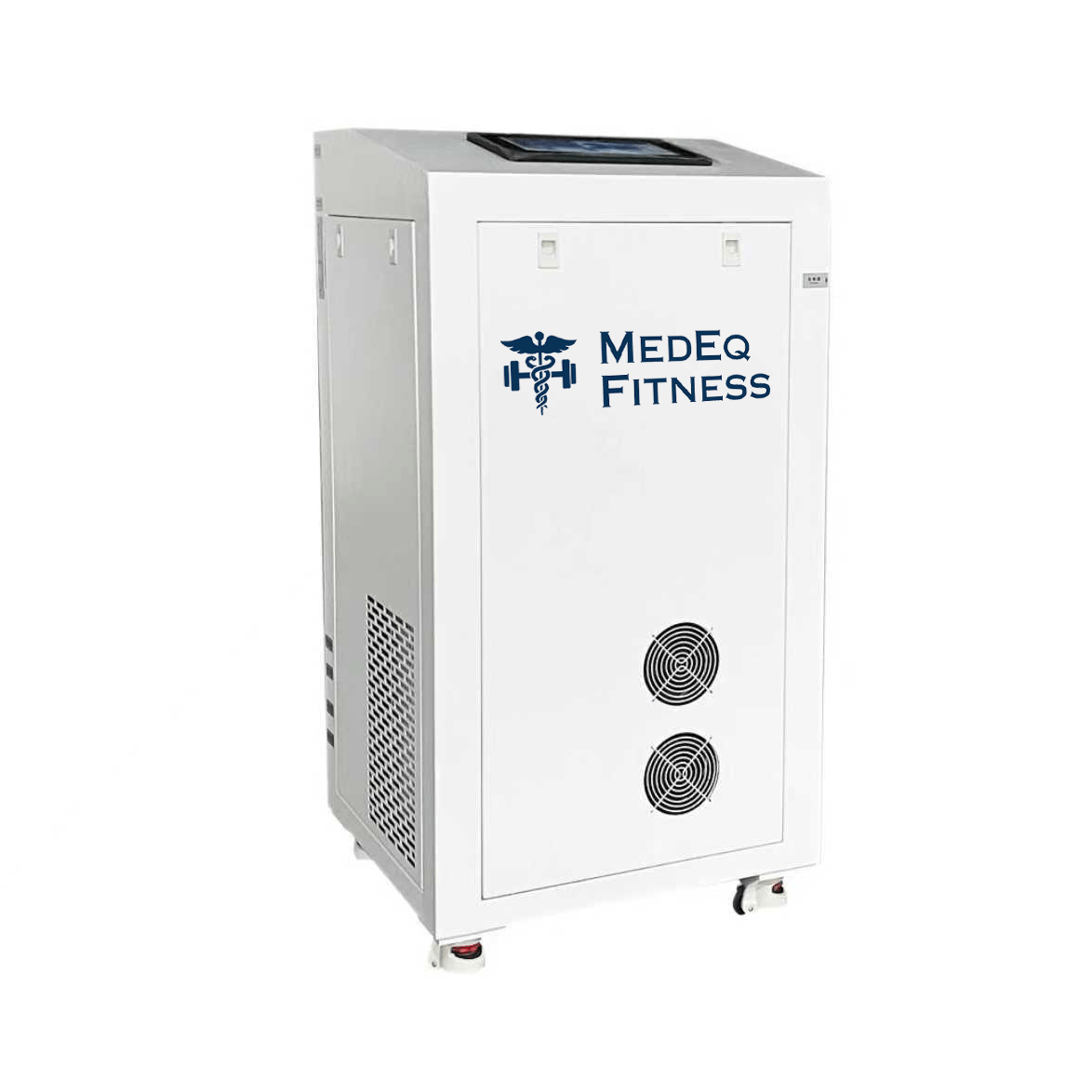

All-In-One Unified Host Console: A single external unit manages the oil-free air compressor, the Pressure Swing Adsorption (PSA) oxygen system, and the active cabin air-conditioning.
-
Custom Upgrade Pathways:Supports an optional Built-In Breathing System (BIBS) for dedicated mask-based delivery, or an optional internal red light wellness panel.*
-
Multi-Stage Environmental Care:Combines particulate intake filtration with an integrated negative-ion generator to maintain fresh, crisp, and filtered ambient air throughout the session.
-
Acoustic & Climate Comfort:Active climate control loops manage humidity (~26%) and temperature, while sound-dampening structures keep internal noise to a exceptionally quiet level (≤20 dB typical interior).
-

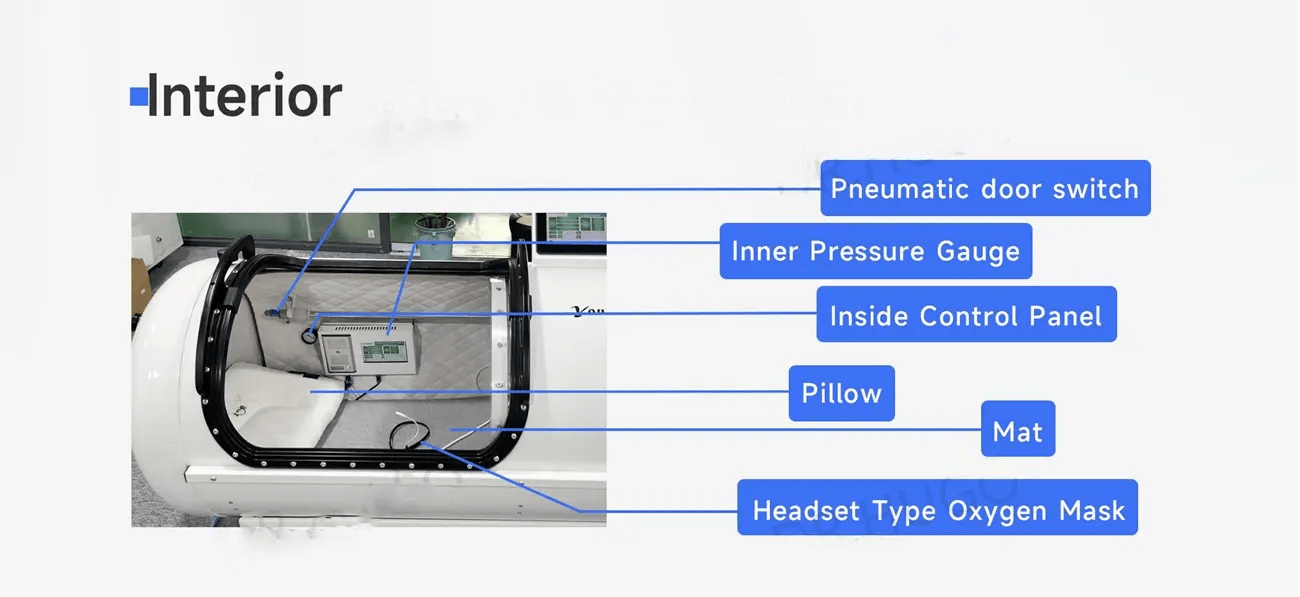

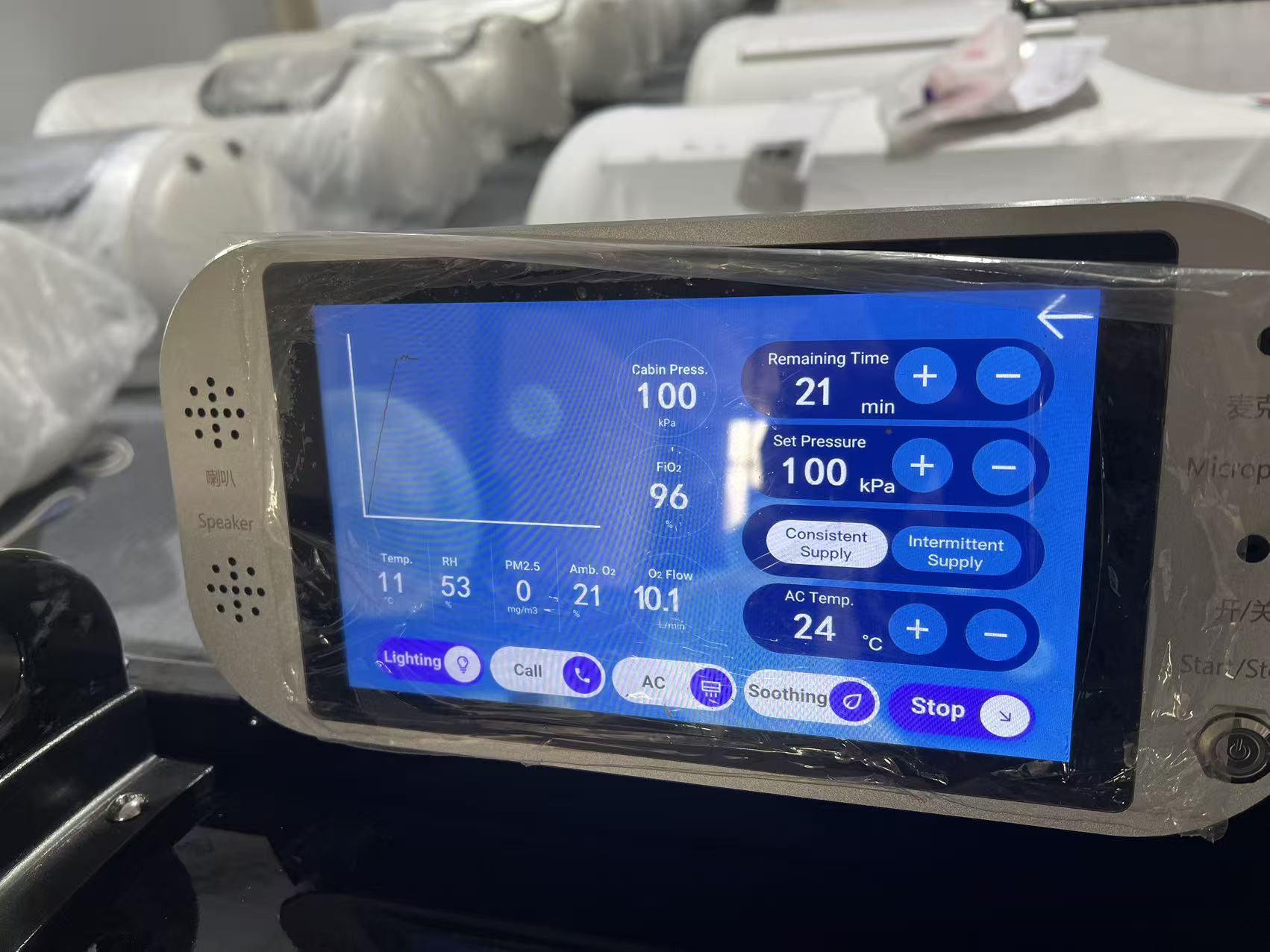

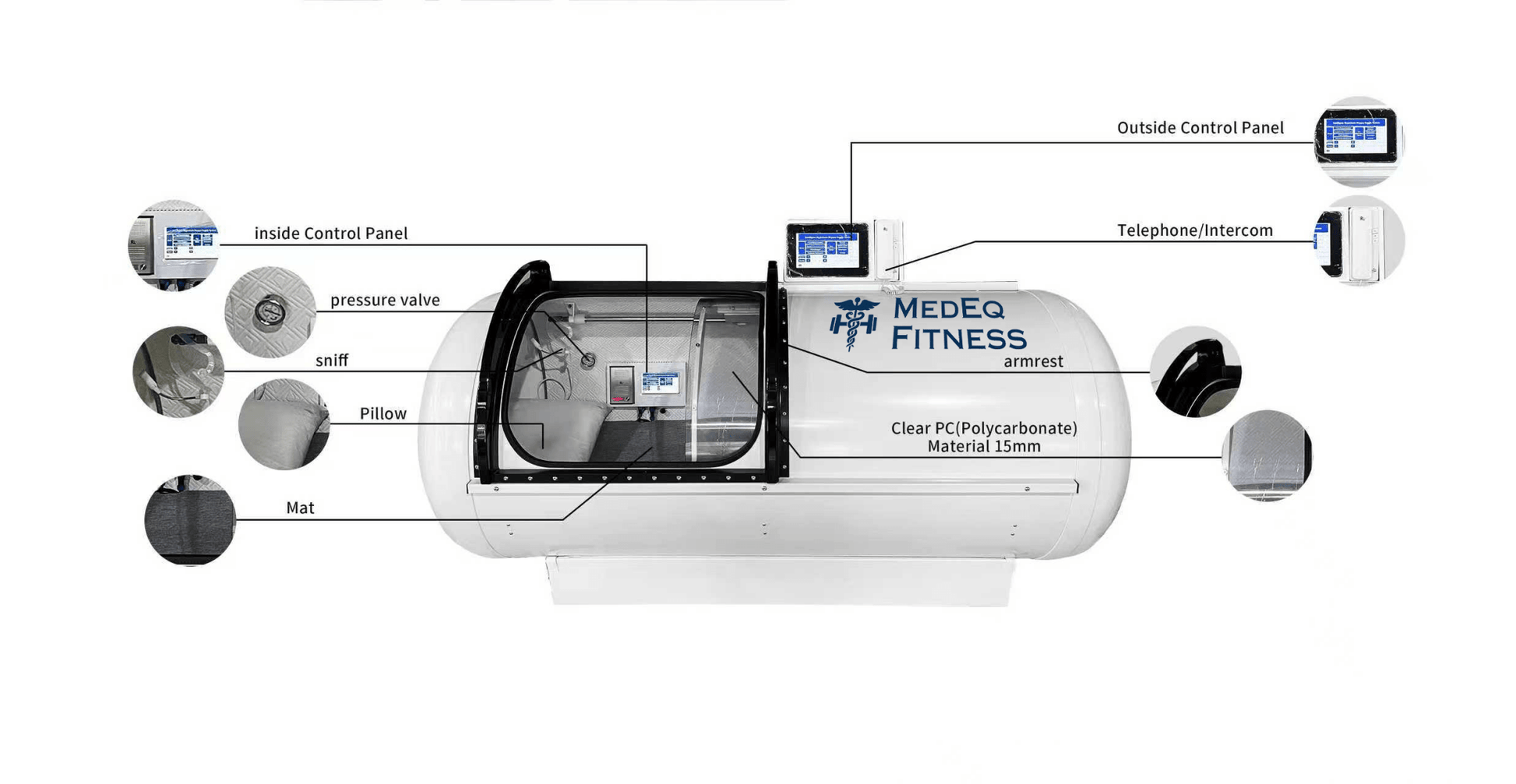

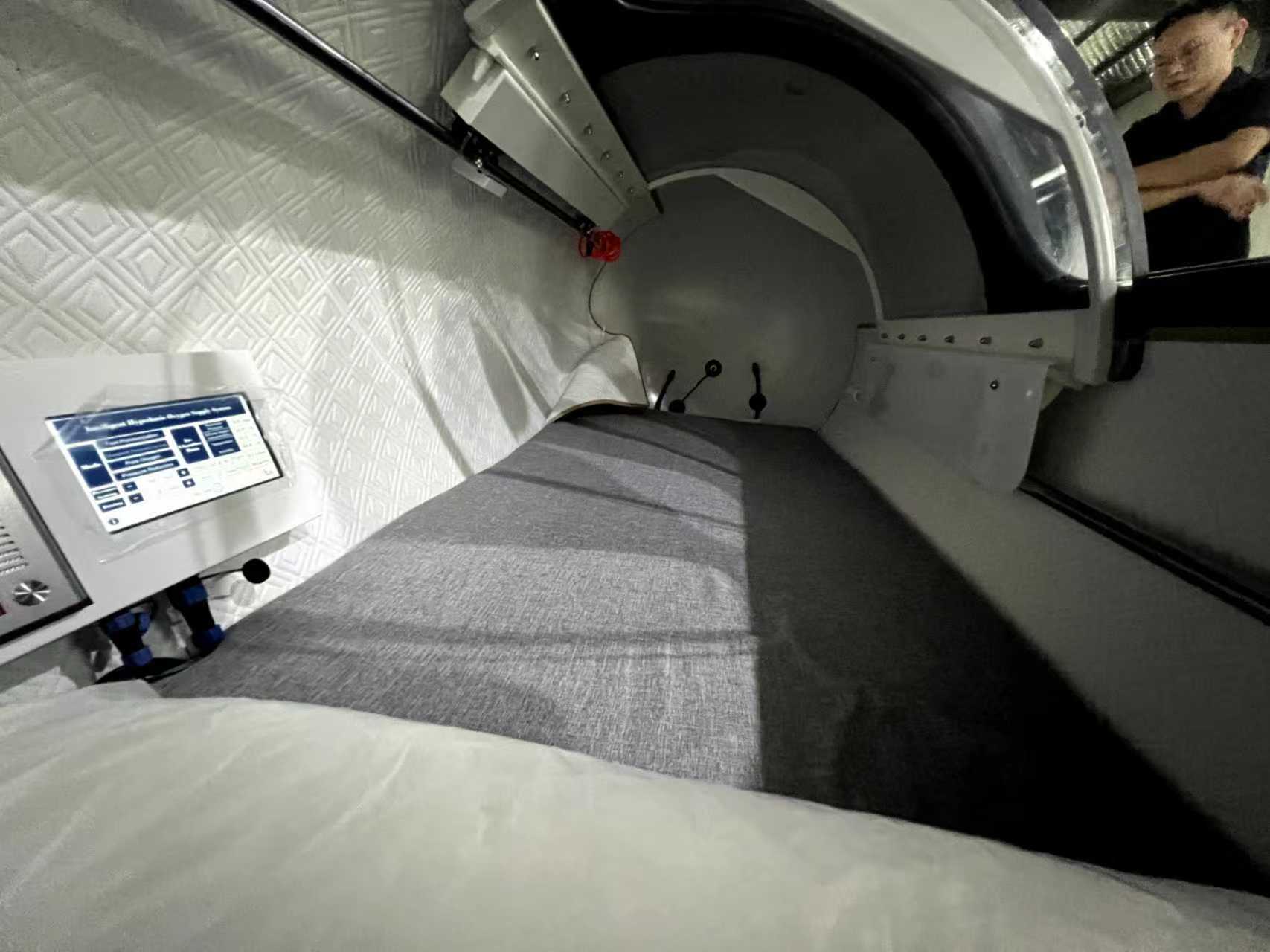

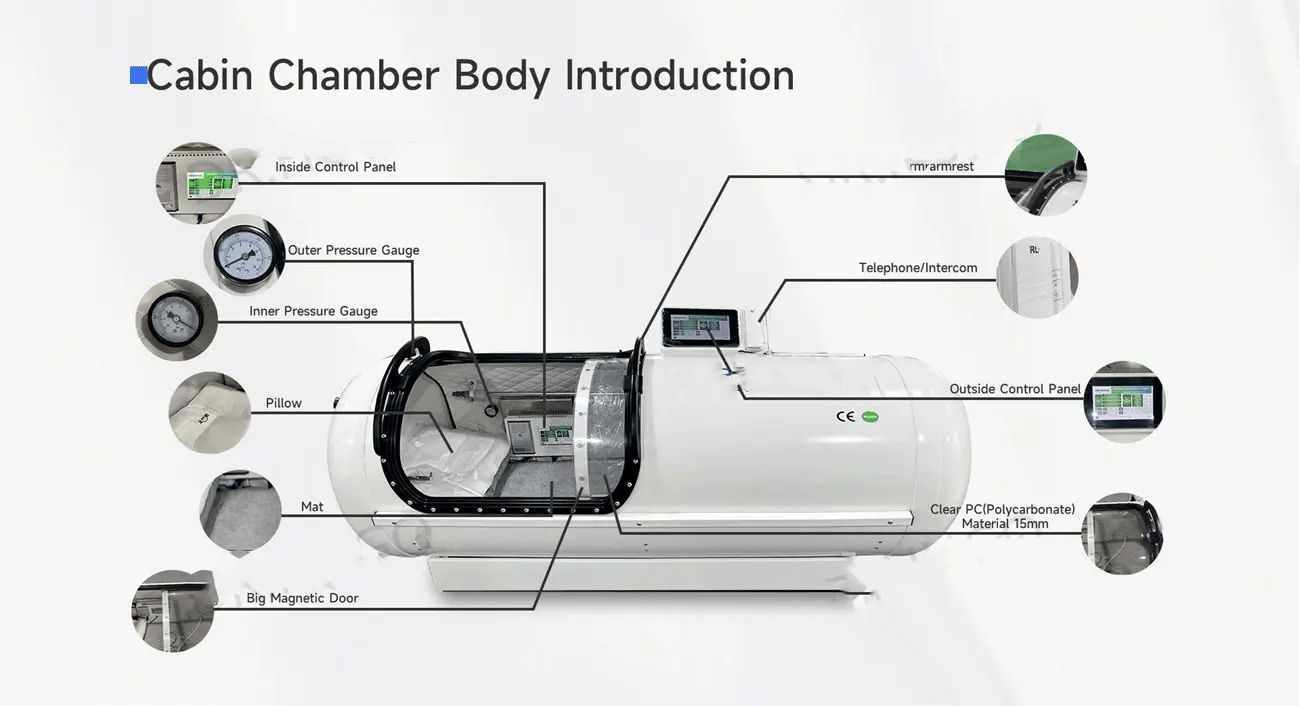

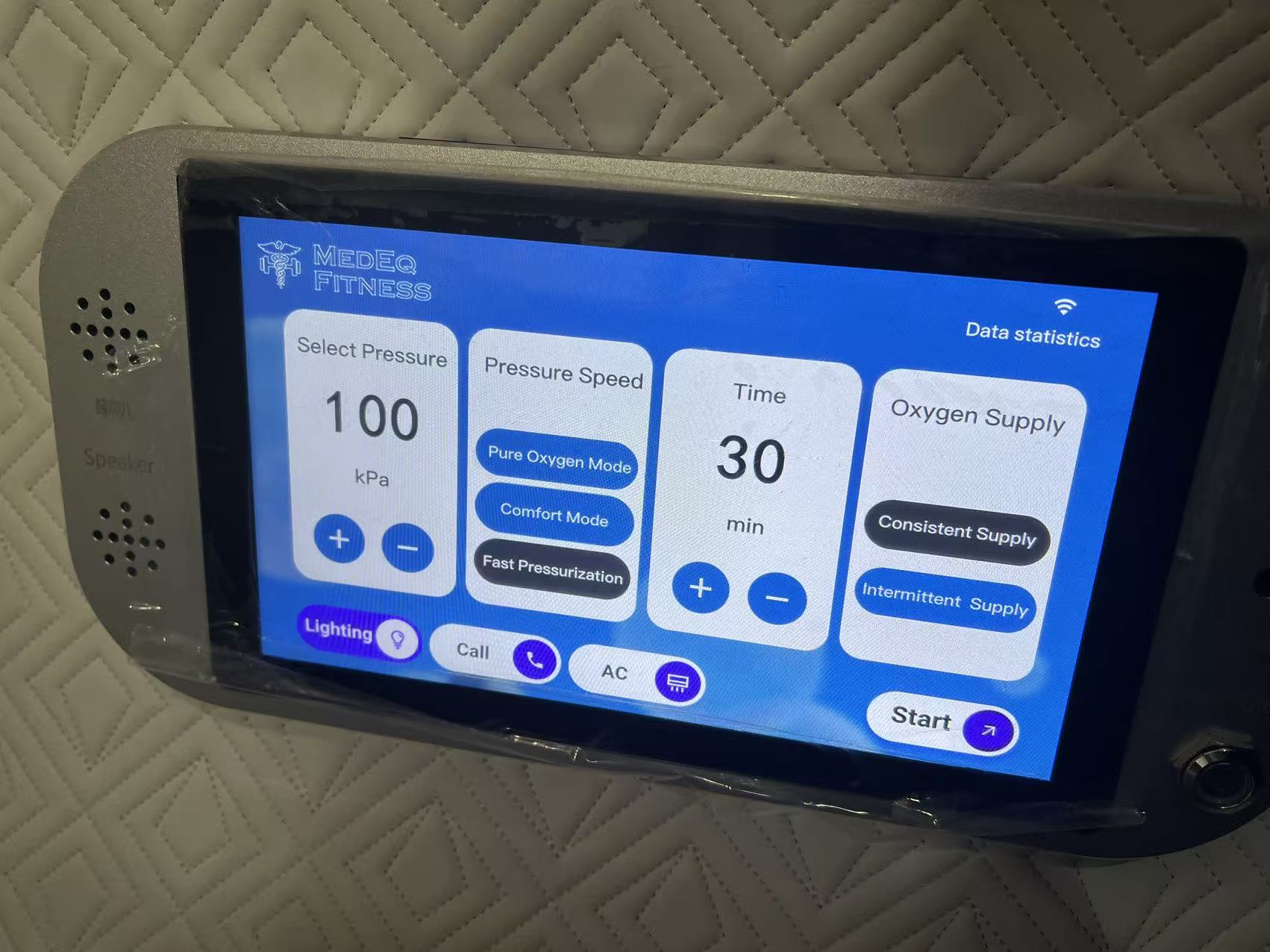

Dual-Screen Intelligent Controls:Synchronized interior and exterior touchscreens provide full duplex control, supported by a built-in wireless intercom for continuous communication.
*System Optimization Note: To maximize internal cabin volume and ensure a premium occupant experience, we do not recommend installing the optional red light panel and the BIBS mask system simultaneously. Selecting one configuration per system is recommended.
System Specifications
| Component | Specification Details |
| Chamber Platform | Kingshare KX-Y01 capsule-type horizontal hard-shell |
| Occupancy Capacity | Monoplace – designed for 1 user |
| Maximum Pressure | Up to 2.0 ATA(Nominal setpoints adjustable down to mild levels) |
| Internal Dimensions | Length: 2000 mm (≈78.7 in) | Diameter: 750 mm (≈29.5 in) |
| Shell Material | Structural aircraft-grade aluminum alloy pressure vessel |
| Ambient Cabin Oxygen | Regulated to remain at or below 23% for maximum fire risk mitigation |

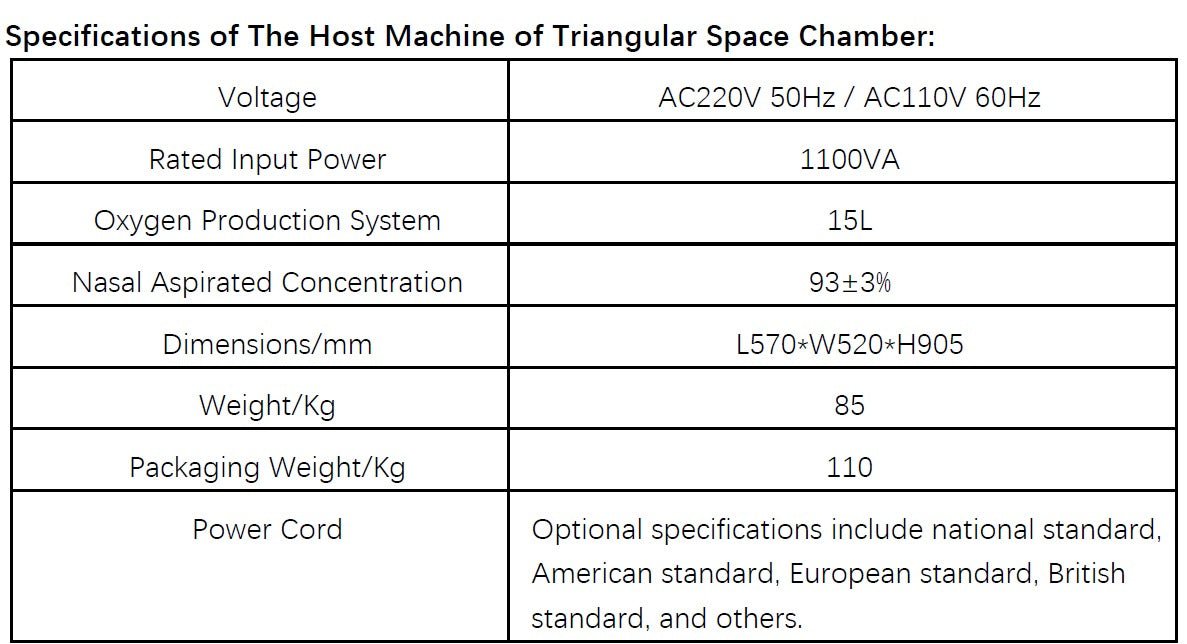

| Console Dimensions | Compact ~590 × 520 × 903 mm (≈23.2 × 20.5 × 35.6 in) footprint |
| Oxygen Output (PSA) | ≈93% ±3% purity with a high-flow capacity up to ~15 L/min |
| Electrical / Power Draw | Standard 110V/220V compatibility | Approximately 850–1000 Watts |
Integrated Safety Systems
-

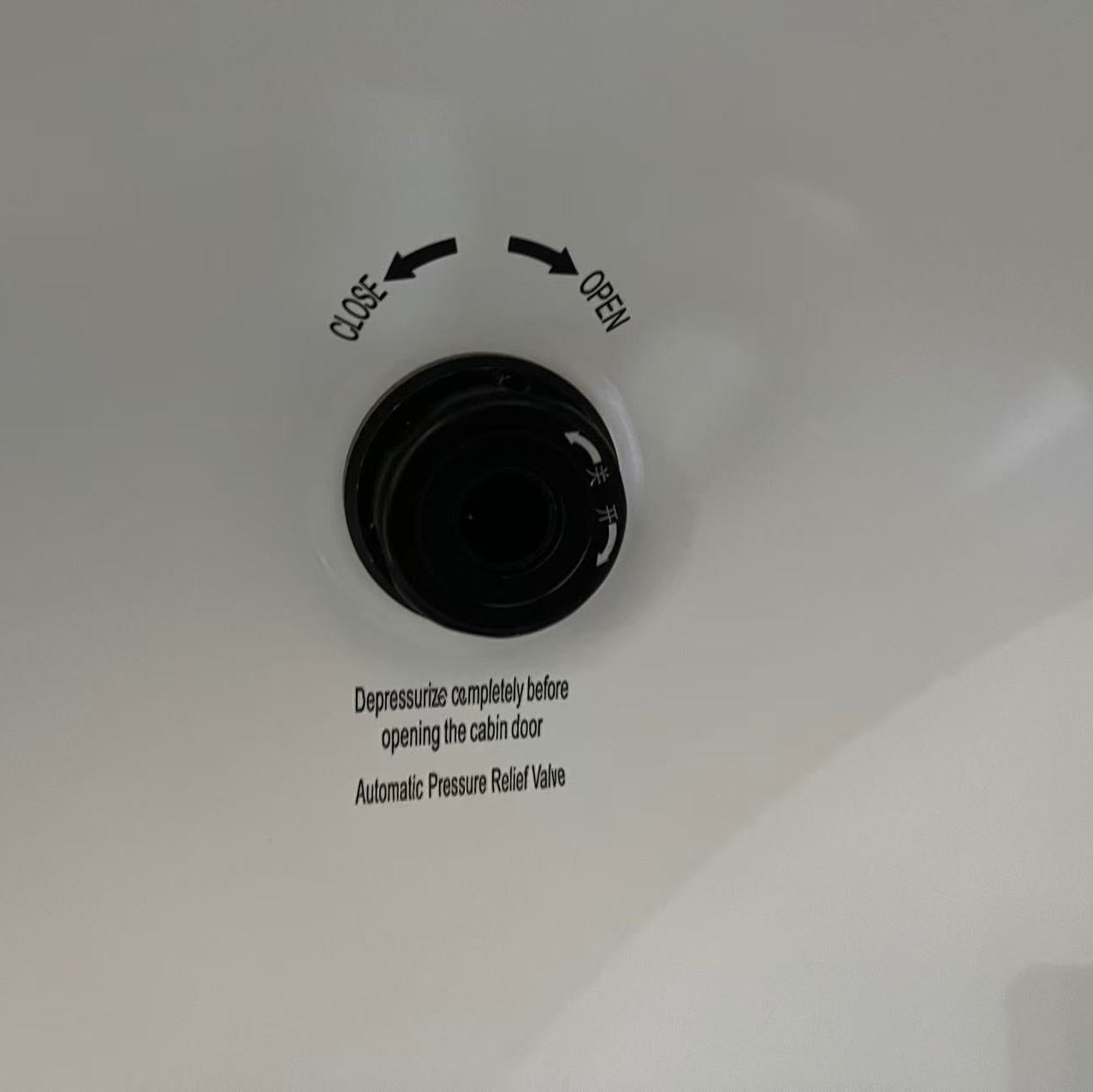

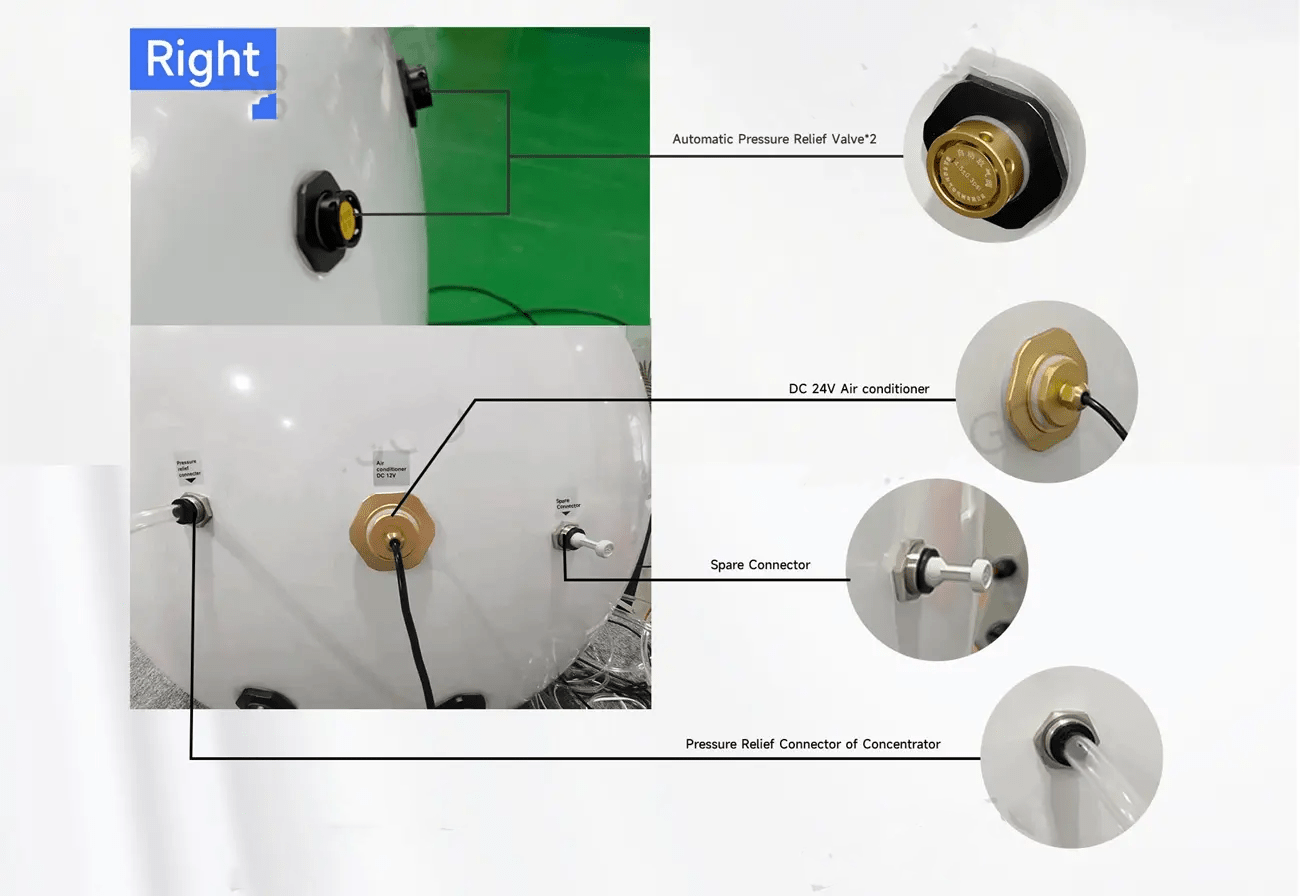

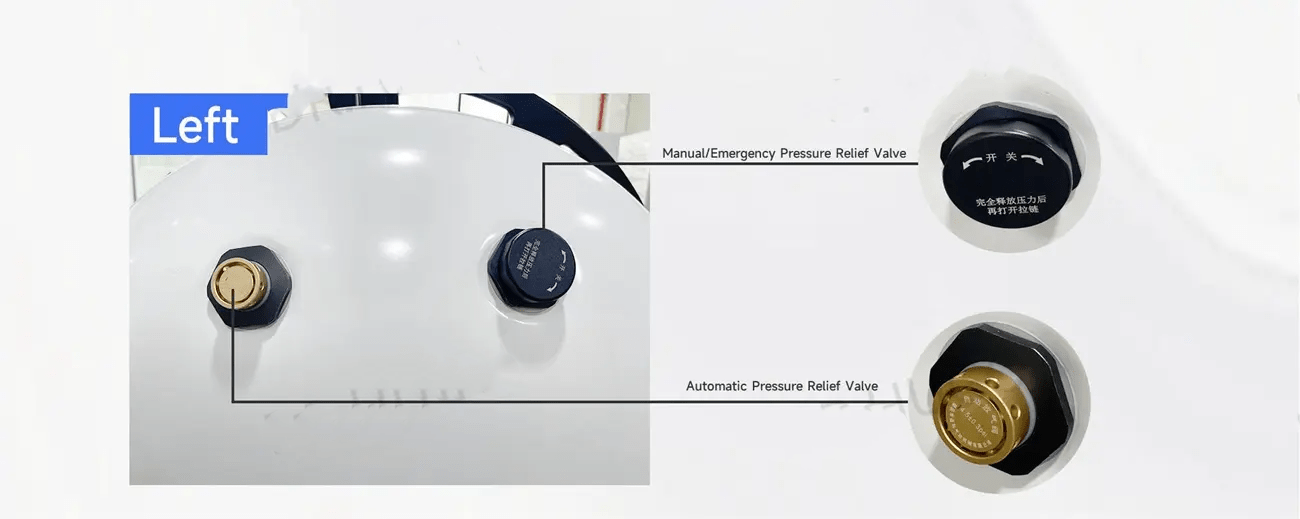

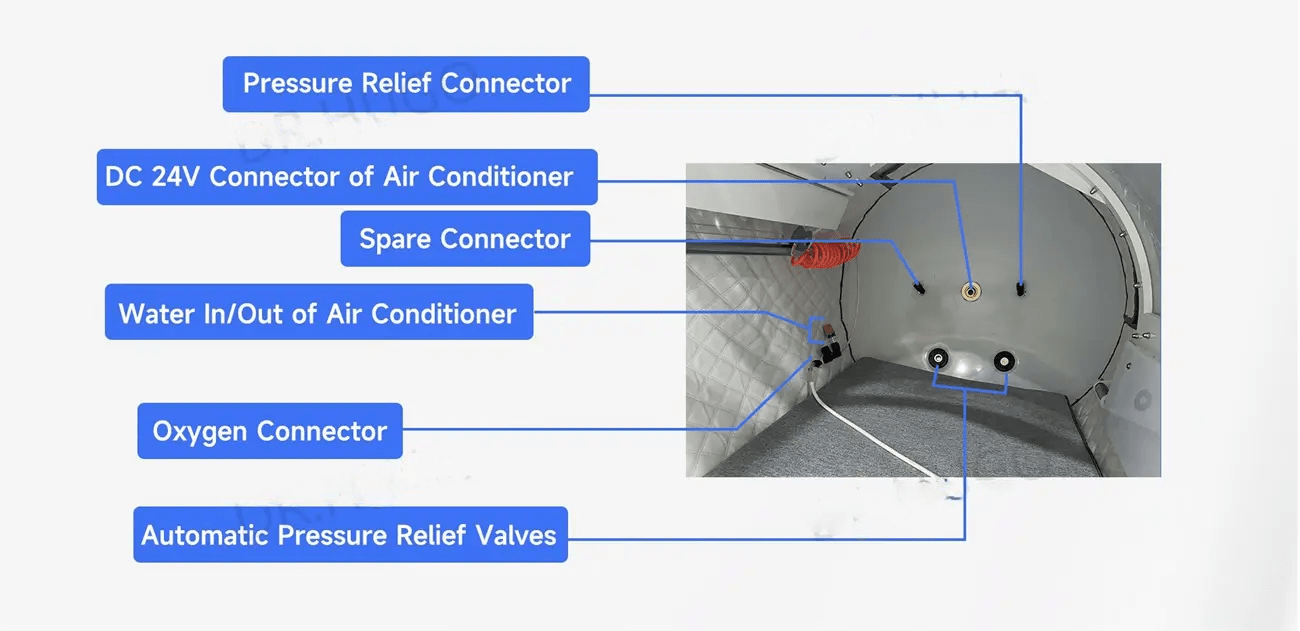

Redundant Relief Hardware:Equipped with multiple automatic over-pressure safety valves and manual pressure relief backup hardware.
-
Rapid Depressurization Control: Features emergency stop controls and rapid-vent mechanisms to safely bring the capsule back to standard room pressure swiftly if required.
-
Structural Integrity:Built entirely with pressure-vessel-grade alloys designed to align with international best practices for 2.0 ATA class systems.
Standard Accessories Included
Every Premier Edition system comes complete with the aircraft-grade aluminum capsule, the all-in-one unified host console (compressor, oxygen system, and AC), multi-stage air filtration media, an internal wireless intercom, dual synchronized touchscreen controls, a comfortable interior layout, and complete operation and maintenance documentation.
Bring medical-grade structural engineering and luxury-tier recovery technology to your home or facility. Order the TimeCapsule C750+ Premier Edition Hard-Shell Chamber today.
